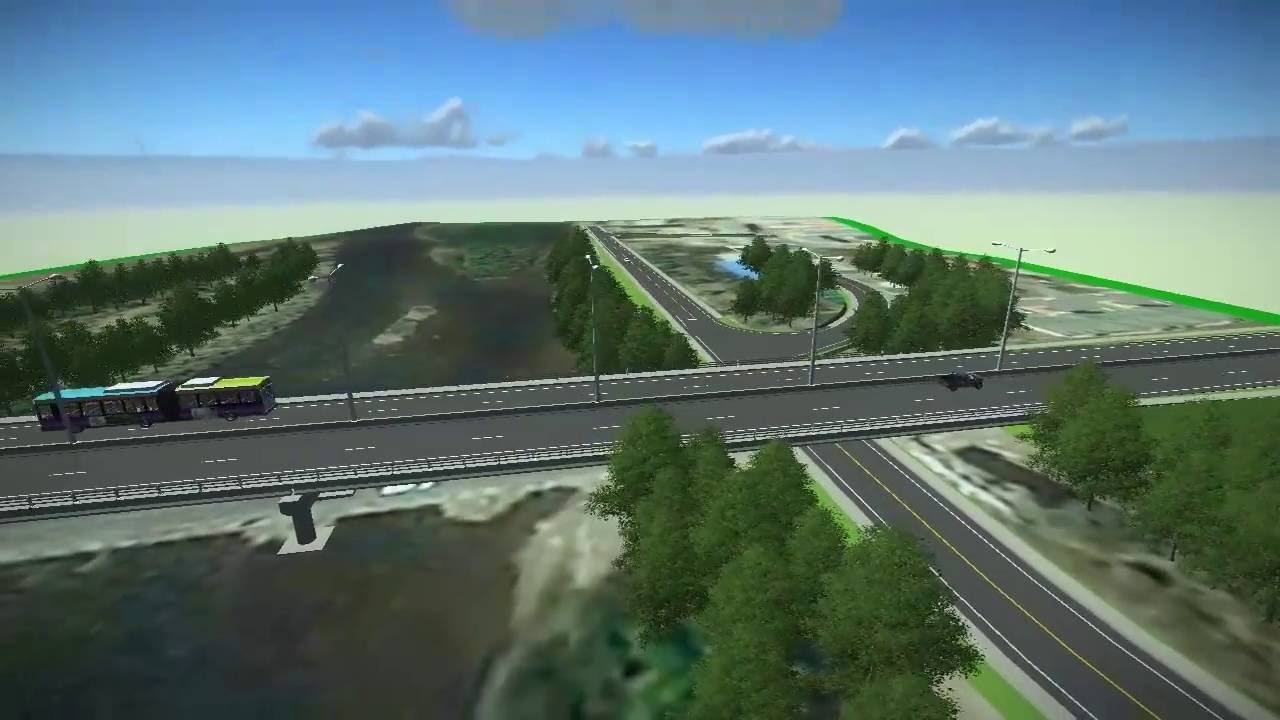

The combination of these tools helps to increase design productivity, identify risks and minimize project costs. One of the ways OpenRoads ConceptStation is able to accomplish this is by utilizing relevant BIM data from sources such as existing point clouds, reality meshes, GIS, etc.īuilding on that existing BIM data, OpenRoads ConceptStation allows for better decision making by utilizing project cost and engineering drawing tools. Visualization Settings are now independently managed in LumenRTĪbout OpenRoads ConceptStation. OpenRoads ConceptStation is a new modeling application that allows civil engineering professionals to create conceptual road and bridge models much more quickly-within hours as opposed to days. New Background Overrides (Customizable Gradients) – Hyperloop support (Technology Preview mode only) Additional parameters to help size the tunnel Additional shapes support (box, horseshoe, curvilinear (3 radii) Proper handling of lane add/drop at gores
Complete vertical design with reverse parabolic curves Vertical grade at gore matching primary road Sprites added to the legs of intersections (change template on click) Reprojection during import (TIN, DTM, ALG, LandXML) Choose specific alignments to import/export – Allow Fit To View and Override Project Location (Models) – Support of China CGCS2000 geographic coordinate system – New background overrides (customizable gradients) – Updated road markings to comply with Chinese Road Traffic signs and markings standards. – Scalable mesh provenance feedback (where data originated) – Streaming Scalable Mesh (ContextShare integration) The following summarizes the new features and enhancements in OpenRoads ConceptStation.
#Open roads concept station software#
This software offers roadway and bridge design capabilities to help road and land development engineers create intelligent models in context. The OpenRoads ConceptStation team is extremely happy to announce the new release of OpenRoads ConceptStation CONNECT Edition.
